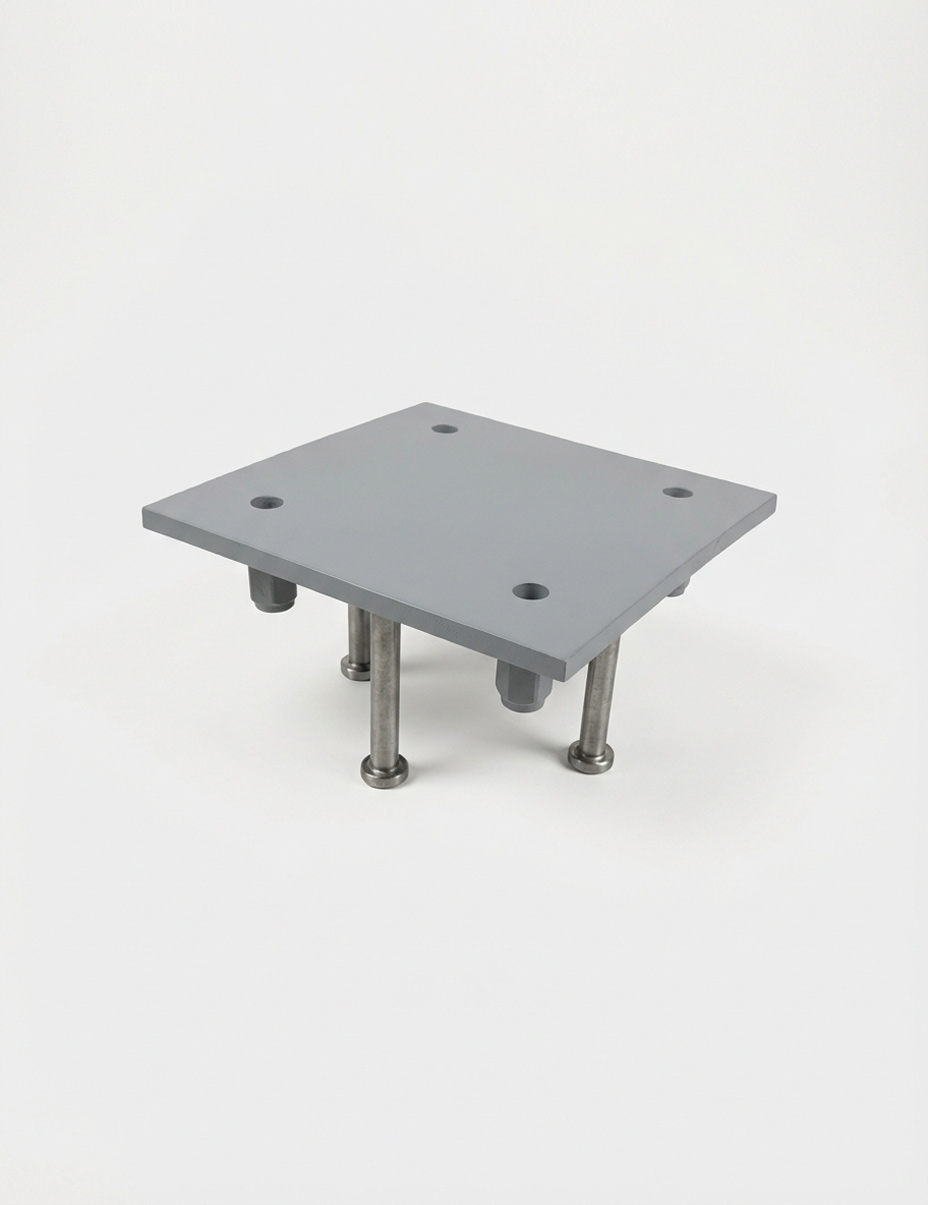

Threaded Steel Embed Plate 4 Studs
$229.99
Simplify your installations with our Pre-Threaded Concrete Embed Plates. Designed for wet-set concrete applications, these plates allow you to bolt steel posts directly to the foundation, no welding required. Features heavy duty 1/2″ thick plate.

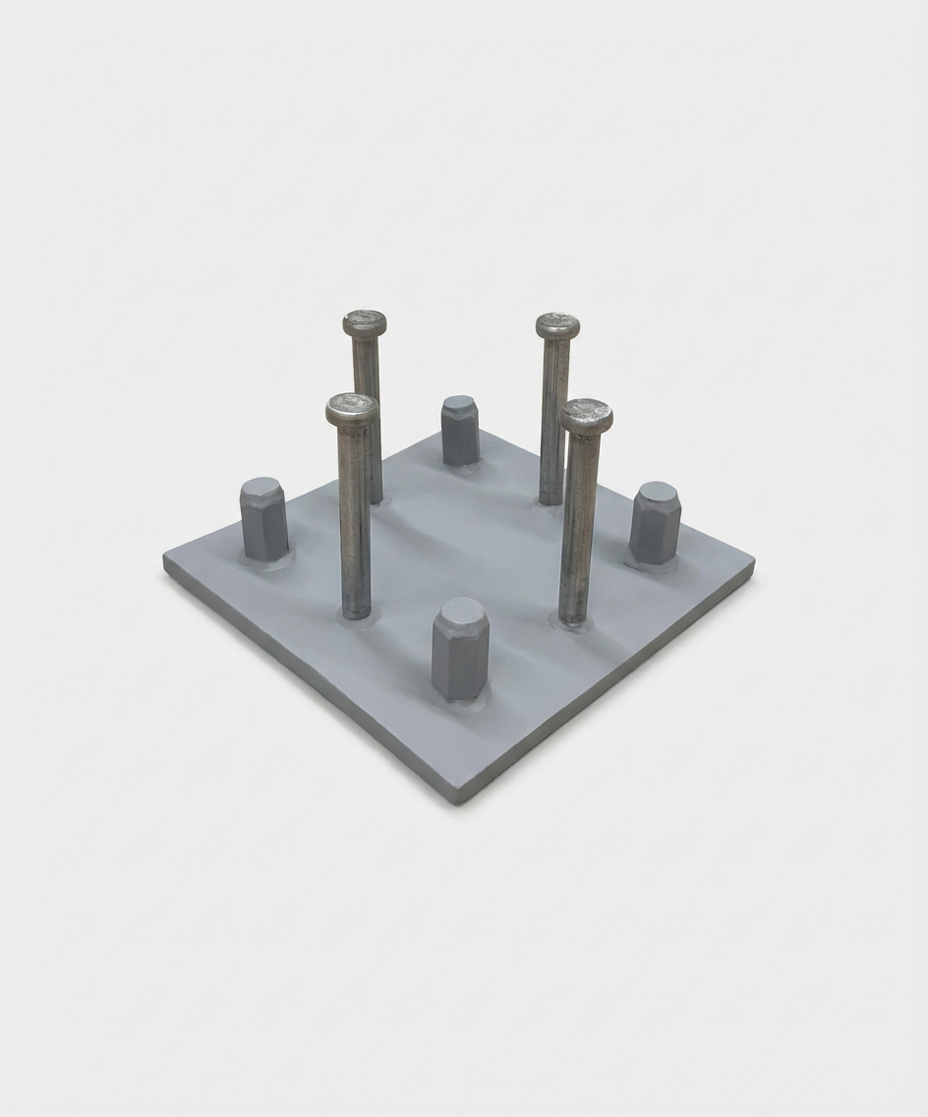

- Secure Anchoring: Features 4x standard Nelson headed studs for superior concrete grip.
- Ready-to-Bolt: Threaded holes eliminate the need for post-pour drilling or welding.
- Finish: Shop Primed Gray.
- Sizes Available:
- 12″ x 12″: Fits 8″ x 8″ bolt patterns.

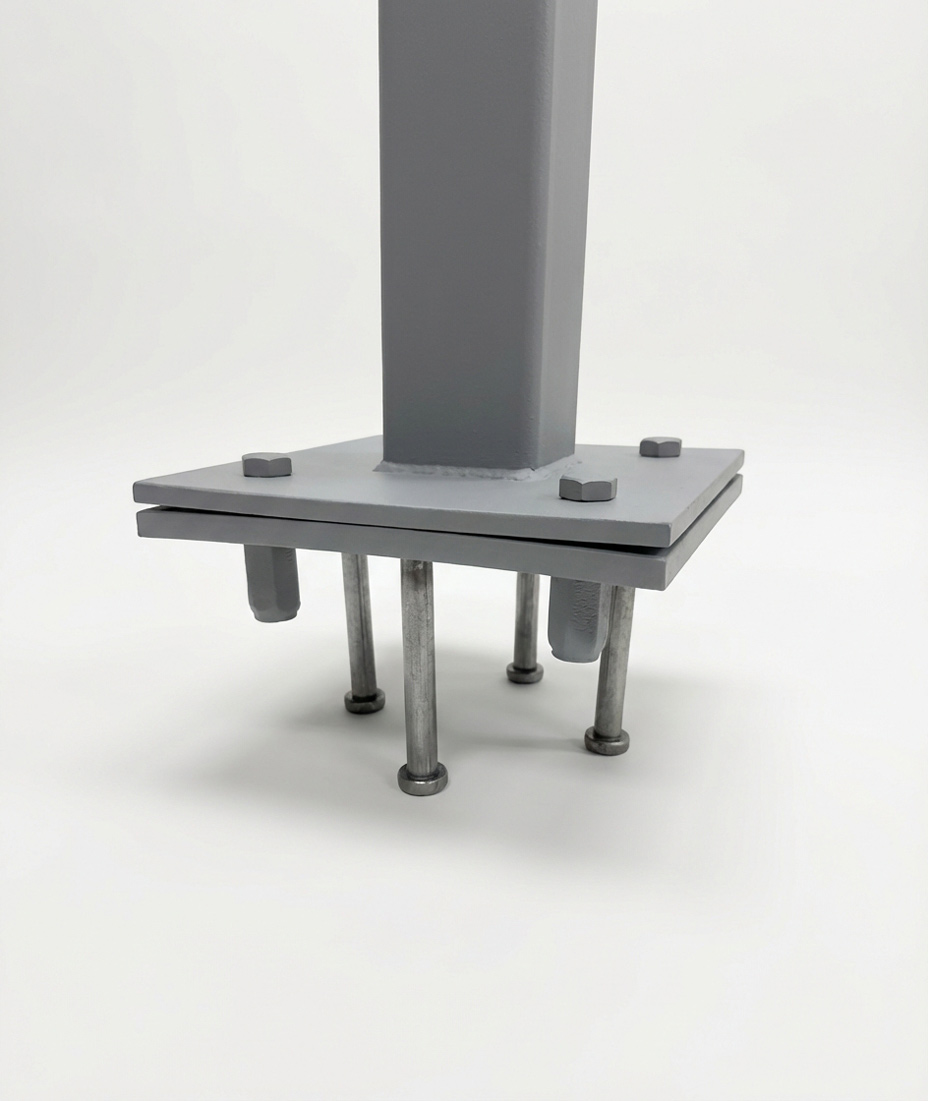

Achieve a rock-solid foundation connection without the hassle of on-site welding. Our Threaded Concrete Embed Plates are designed for contractors and builders who need a precise, high-strength mounting surface for steel posts, columns, and base plates.
These plates are “wet-set,” meaning they are placed into the concrete formwork before the pour. Once the concrete cures, the Nelson studs lock the plate permanently into the foundation, leaving you with a perfectly flush, pre-tapped steel surface ready for bolting.
Why Choose Threaded Embeds?
- No Welding Necessary: Because the mounting holes are pre-threaded, you can secure your base plates using standard structural bolts. This saves time and eliminates the need for expensive welding equipment on the job site.
- Superior Hold: Equipped with (4) industrial-grade Nelson studs, these plates transfer tension and shear loads deep into the concrete structure.
Technical Specifications & Sizing
We offer this embed plate in two structural configurations to match your specific base plate requirements:
| Plate Size | Compatible Bolt Pattern (Center-to-Center) | Anchor Type | Thread Size |
| 12″ x 12″ | 8″ x 8″ Square Pattern | (4) Nelson Studs | 5/8″-11 |
Product Features:
- Material:A36 Carbon Steel
- Finish: Red Shop Primer
- Plate Thickness: 1/2″
| Weight | 26 lbs |
|---|---|
| Dimensions | 12 × 12 × 6.5 in |
| Size |
6" x 8" ,6" x 6" |
