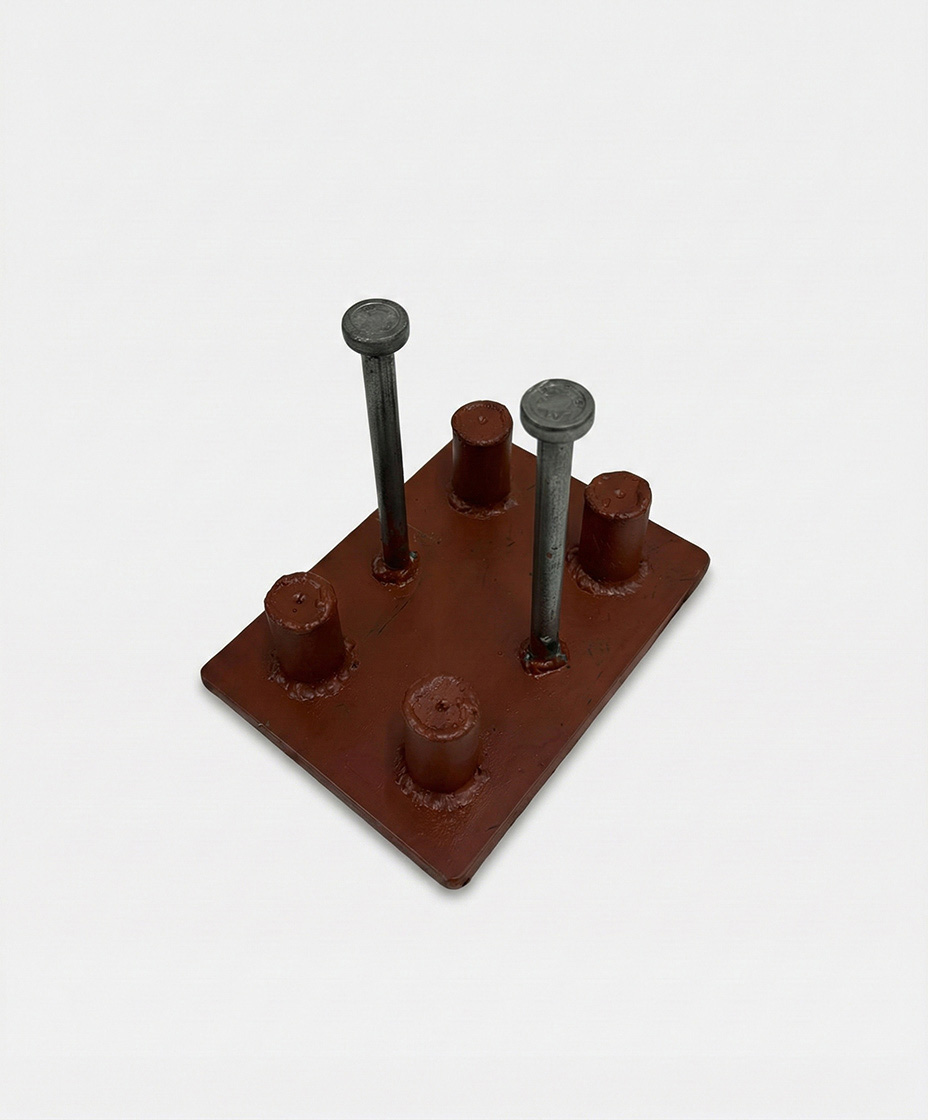

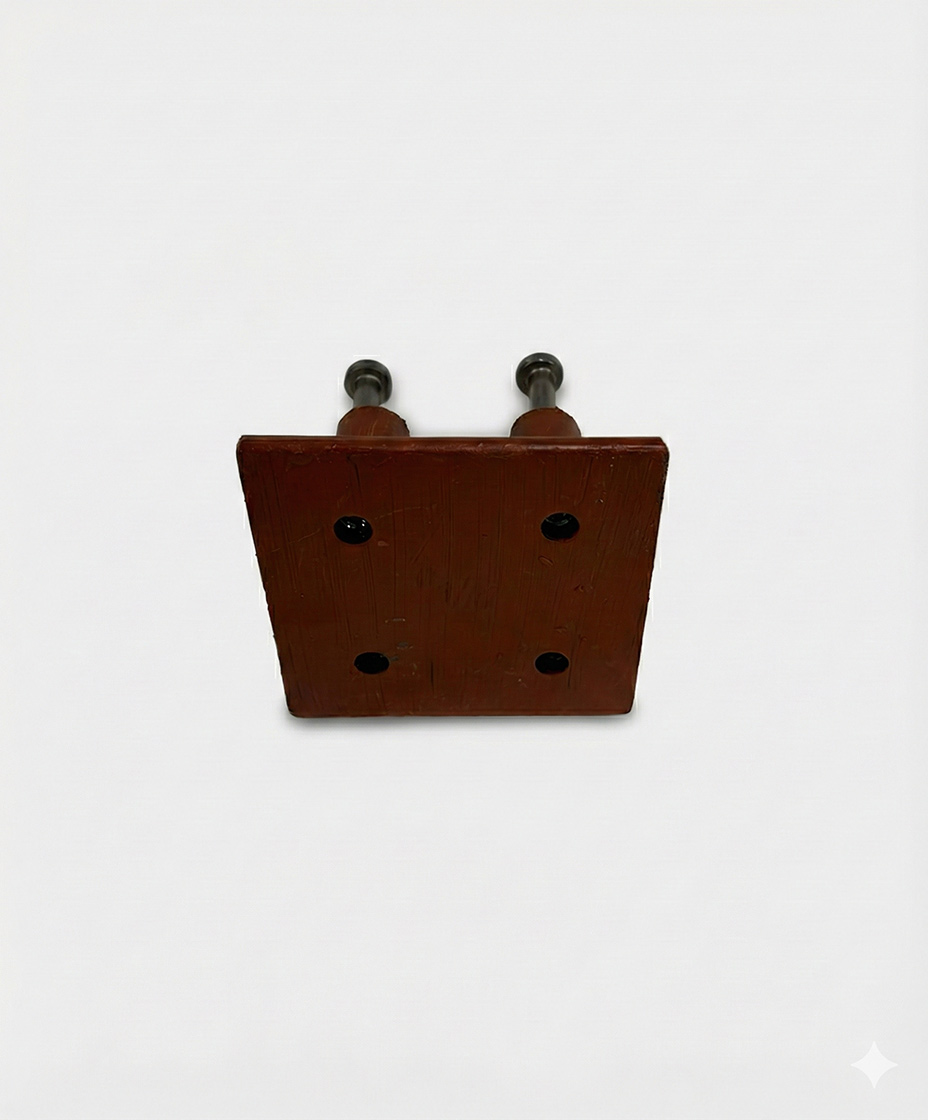

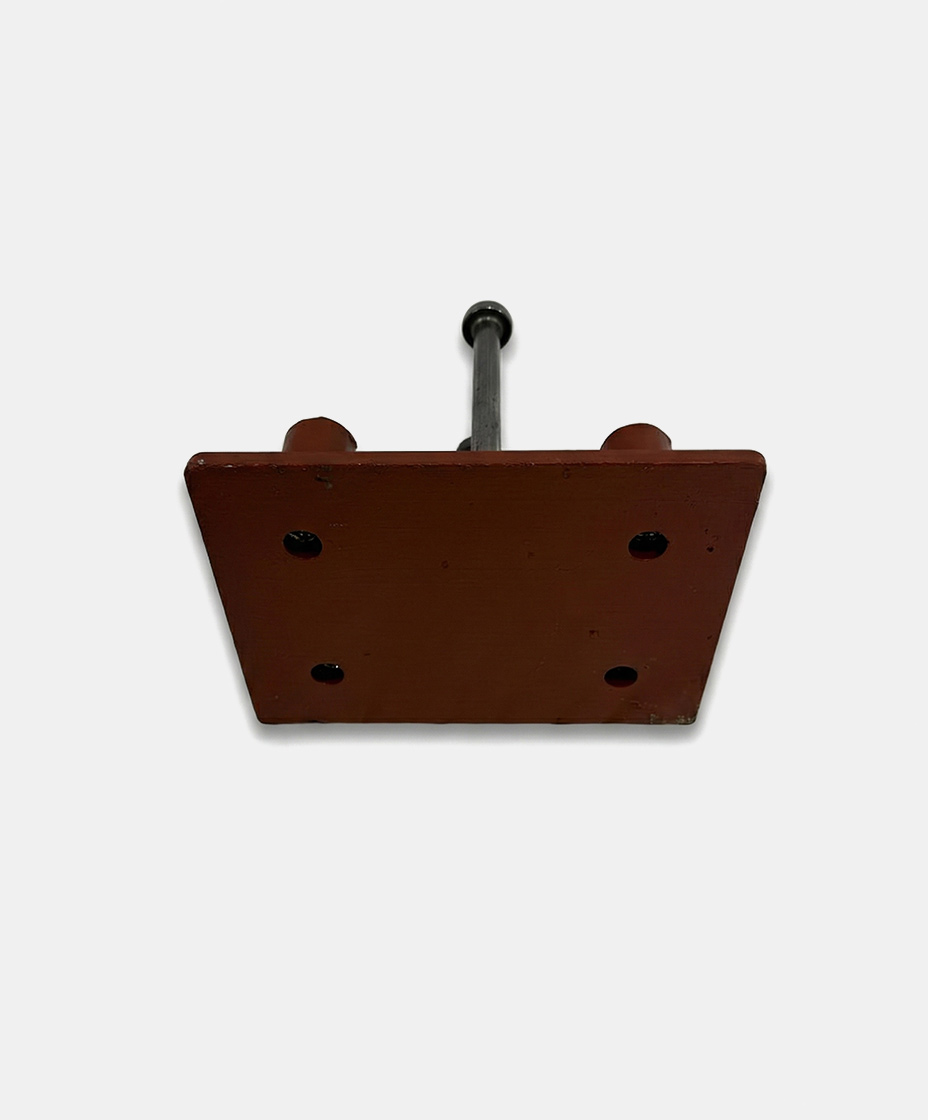

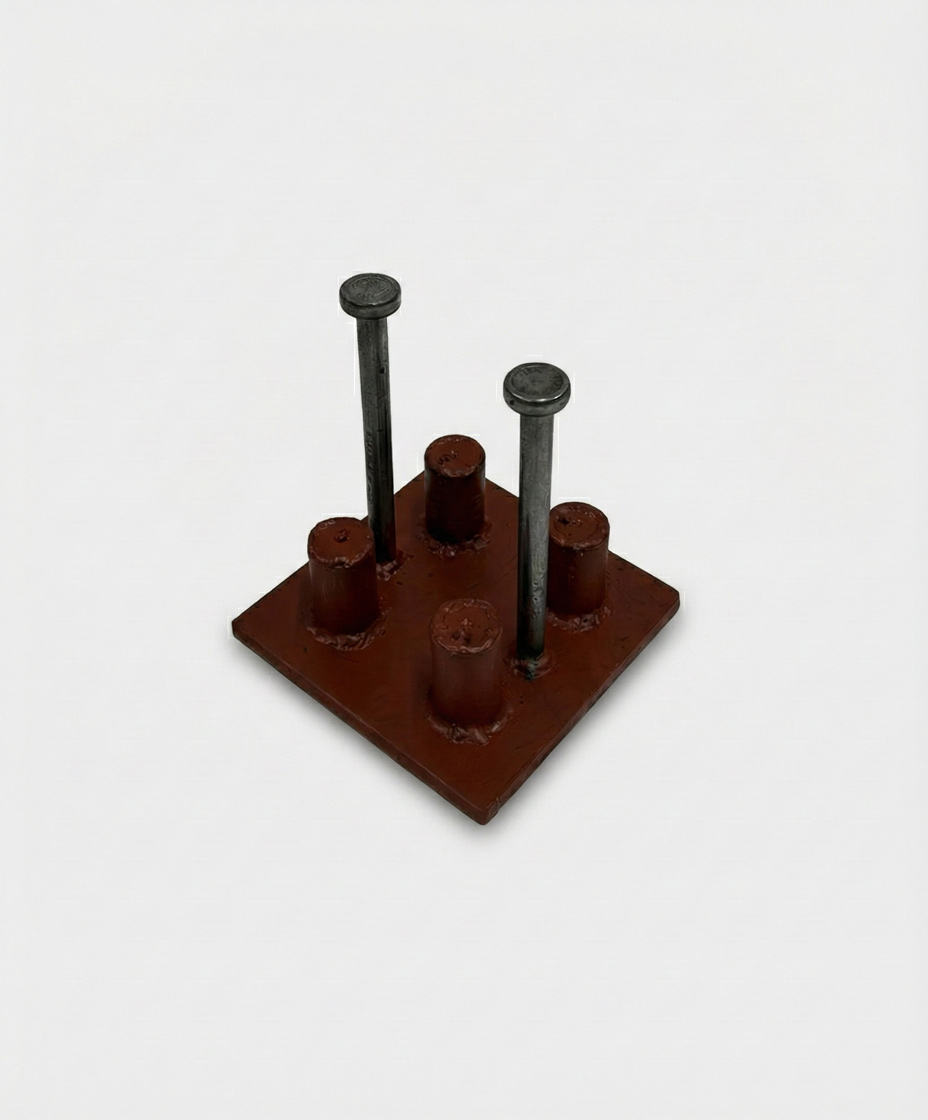

Threaded Steel Embed Plate 2 Studs
Price range: $49.99 through $59.99
Simplify your installations with our Pre-Threaded Concrete Embed Plates. Designed for wet-set concrete applications, these plates allow you to bolt steel posts directly to the foundation, no welding required.
- Secure Anchoring: Features 2x standard Nelson headed studs for superior concrete grip.
- Ready-to-Bolt: Threaded holes eliminate the need for post-pour drilling or welding.
- Two Sizes Available:
- 6″ x 6″: Fits 3″ x 3″ bolt patterns.
- 6″ x 8″: Fits 3″ x 5″ bolt patterns.
Achieve a rock-solid foundation connection without the hassle of on-site welding. Our Threaded Concrete Embed Plates are designed for contractors and builders who need a precise, high-strength mounting surface for steel posts, columns, and base plates.
These plates are “wet-set,” meaning they are placed into the concrete formwork before the pour. Once the concrete cures, the Nelson studs lock the plate permanently into the foundation, leaving you with a perfectly flush, pre-tapped steel surface ready for bolting.
Why Choose Threaded Embeds?
- No Welding Necessary: Because the mounting holes are pre-threaded, you can secure your base plates using standard structural bolts. This saves time and eliminates the need for expensive welding equipment on the job site.
- Superior Hold: Equipped with (2) industrial-grade Nelson studs, these plates transfer tension and shear loads deep into the concrete structure.
Technical Specifications & Sizing
We offer this embed plate in two structural configurations to match your specific base plate requirements:
| Plate Size | Compatible Bolt Pattern (Center-to-Center) | Anchor Type | Thread Size |
| 6″ x 6″ | 3″ x 3″ Square Pattern | (2) Nelson Studs | 5/8″-11 |
| 6″ x 8″ | 3″ x 5″ Rectangular Pattern | (2) Nelson Studs | 5/8″-11 |
Product Features:
- Material:A36 Carbon Steel
- Finish: Red Shop Primer
- Plate Thickness: 3/8″
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size |
6" x 8" ,6" x 6" |
