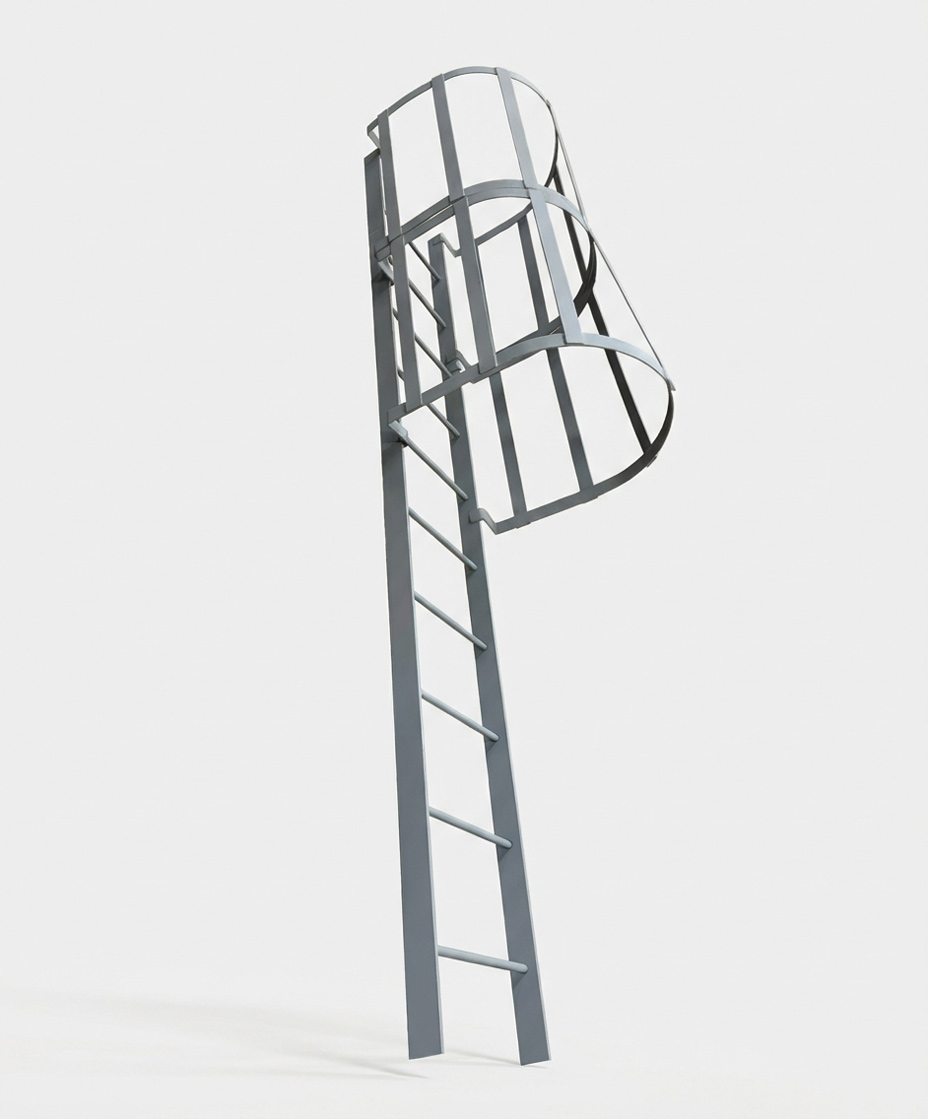

Fabricated Steel Roof Ladder with Cage
$2,199.99
Heavy-duty roof access ladder hand-fabricated for commercial buildings. Designed to provide safe transit between different roof elevations, this ladder features high-strength flat bar side rails and an integrated safety cage.
- Height: 10ft 8in
- Width: 19in
- Side Rail Construction: 3/8″ x 3″ Steel Flat Bar
- Features: Integrated safety cage on the upper section
- Finish: Shop Primed Grey (Final finish required after installation)
- Application: Commercial roof-to-roof transition and high-level access
This fabricated steel ladder is built specifically for commercial roof environments where access between different levels is required. Hand-welded in our shop, it provides a permanent and stable climbing solution for maintenance crews and facility managers.
Rugged Shop Fabrication
The ladder is constructed using heavy 3/8″ x 3″ steel flat bar for the side rails, ensuring a rigid frame that won’t flex or twist. The upper portion includes a protective safety cage to meet standard facility requirements for higher-level roof access.
Built for Different Roof Levels
Whether you are transitioning from a main roof to a mechanical penthouse or moving between different deck elevations, this 10-foot 8-inch ladder is designed for permanent exterior installation. The 19-inch width provides a compact footprint while maintaining enough climbing space for professional use.
Technical Specifications
| Attribute | Specification |
| Total Height | 10′ 8″ |
| Total Width | 19″ |
| Side Rail Material | 3/8″ x 3″ Steel Flat Bar |
| Rung Spacing | 12″ Centers |
| Safety Feature | Integrated Upper Safety Cage |
| Weight | 165 lbs |
| Finish | Shop Primed Grey |
| Post-Installation | Final Finish/Paint Required |
Notice: Installation and mounting hardware should be verified by a site professional.
| Weight | 165 lbs |
|---|---|
| Dimensions | 128 × 19 × 3 in |
